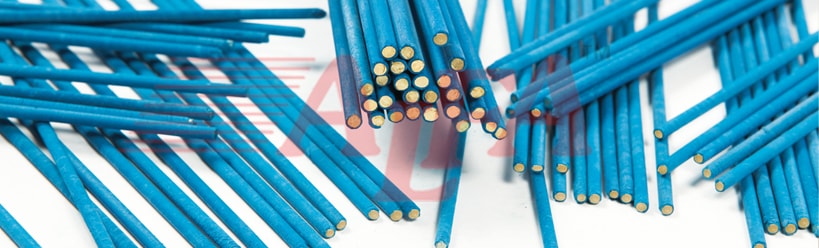

Flux Coated Rods

Flux Coated Rods
Brazing Filler Metal in bare rods form when coated with relevant flux forms Flux Coated Rods. The main elements in Flux Coated Rods are
  • Diameter and length of the bare rod to be coated.
  • Outer diameter of the Flux coated rod.
Why Flux coated brazing rods are preferred over traditional separate rod and flux application
  • There is no need to use a separate flux.
  • Flux coated brazing alloy can be used directly on the job without separate application of flux making the operation quick and economical.
  • Compatibility of flux with the brazing alloy as supplied by the same manufacturer.
  • There is uniform flow of flux along with the brazing alloy during the brazing operation.
  • It eliminates the need for final fluxing step. As a result the final cleaning is easier, and fewer contaminants are contained in rinse water.

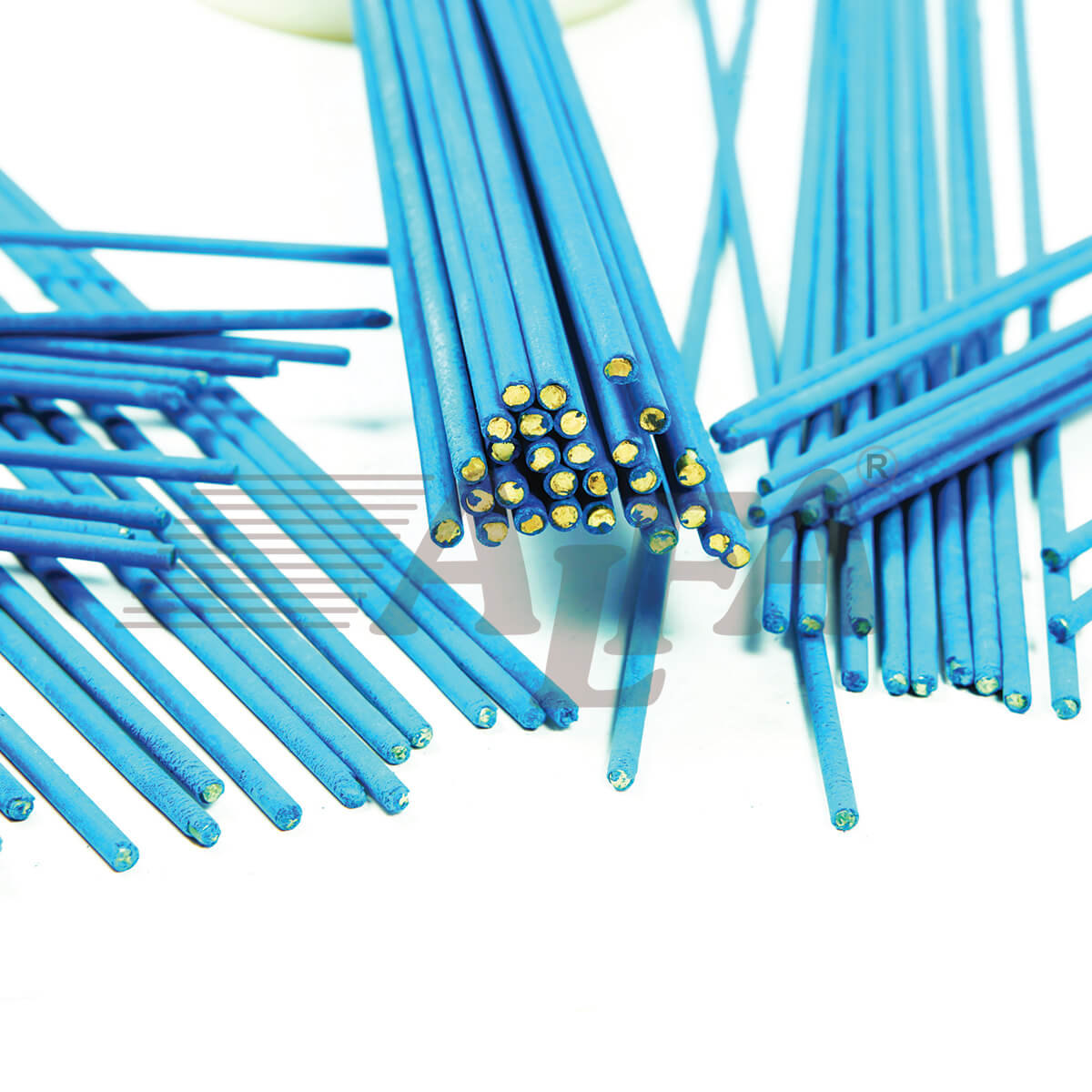

ALFA Flux Coated Brazing Rods

We have launched ALFA range of Flux coated brazing rods. Our range includes
  • Flux Coated Silver Brazing Alloys.

Flux Coated Silver Brazing Alloys

Composition Basis

Silver, Copper, Zinc, with OR Without Cadmium. Silver Brazing Alloys filler metal can be selected based on specifications laid out by
  1. IS 2927-1975
  2. BS:1845
  3. AWS A5.8
  4. DIN 8513
  5. EN 1044

Characteristics

  • Lowest melting point.
  • Excellent flowing characteristics.
  • Excellent capillary action.
  • Strong, clean and smooth joints.

Delivery Forms

Standard Sizes

Diameter X Length (mm) 1.60 X 500 2.00 X 500 2.50 X 500 3.15 X 500
Outer Diameter (mm) 2.00 2.50 3.00 3.65

Customisation

  • Bare Rod diameter from 1.50 to 3.15mm.
  • Standard Length from 350mm to 500mm.
  • Other Exterior diameters on Customers Request.

Flux Coated Brass Brazing Alloys

Composition Basis

Copper, Zinc, with additives

Characteristics

  • Provides excellent wetting action.
  • No objectionable fuming.
  • Very fast and economical operation.
  • Applied with high quality coating to speed up brazing time.
  • Flexible and thin flux coating does not peel off even after bending.
  • Flux coating has extended life span.

Delivery Forms

Standard Sizes

Diameter X Length (mm) 1.60 X 500 2.00 X 500 2.50 X 500 3.15 X 500
Outer Diameter (mm) 2.00 2.50 3.00 3.65

Customisation

  • Bare Rod diameter from 1.50 to 3.15mm.
  • Standard Length from 350mm to 500mm.
  • Other Exterior diameters on Customers Request.

Note: Flux coating is available in a variety of colours. Please specify your preferred colour and we will surely give you the best match. Any colour can be picked for coating on the brazing rods.
